Blast Freezer Series
Efficient | Reliable | Advanced
Temperature Wise application

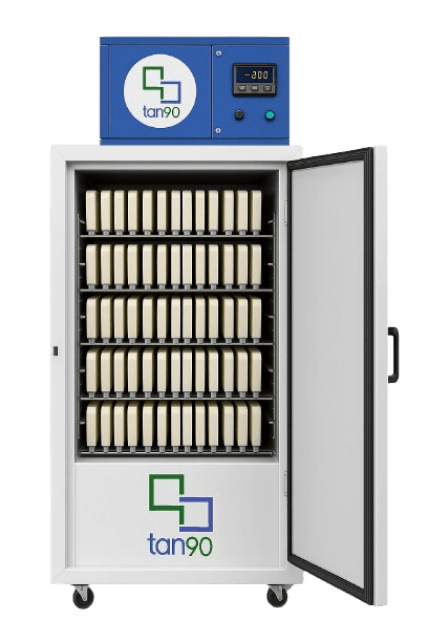

A cutting-edge blast freezer designed for rapid and energy-efficient freezing of Phase Change Material Panels for both chilled and frozen applications
Application Type
Recommended Temperature Range
Model Series
Specifications
External Size mm (LBH)
Internal Size mm (LBH)
Inner volume (LTR)
Temperature Range
Refrigerant (Green Refrigerant
Type of Insulation
Compressor
Compressor Make
Condensor
Power Supply
Castor Wheat
Blast Freezing Cycle time
TNBF1600CH
1200 x 1200 x 2400
1000 x 1000 x 1600
1600
R404A
PUF
Hermatically Sealed
Copeland / Emersion
Fin and tube type
Single Phase , 200 V, 50 Hz
4
12 Hours
TNBF800CH
1200 x 700 x 2400
1000 x 500 x 1600
800
R404A
PUF
Hermatically Sealed
Copeland / Emersion
Fin and tube type
Single Phase , 200 V, 50 Hz
4
12 Hours
TNBF1500FR
1300 x 1100 x 2500
1000 x 800 x 1850
1500
R404A
PUF
Hermatically Sealed
Copeland / Emersion
Fin and tube type
Single Phase , 200 V, 50 Hz
4
12 Hours
TNBF200FR
1300 x 700 x 2500
1000 x 400 x 1850
750
R404A
PUF
Hermatically Sealed
Copeland / Emersion
Fin and tube type
Single Phase , 200 V, 50 Hz
4
12 Hours
Why Tan90 is important for you?
Quick freezing
Maintains product integrity
Energy-efficient solutions
